Application:
The OWR type shot blasting machines are designed for cleaning outer surfaces of pipes and round bars before application of the following coatings:
- insulation coating (pre-insulation of pipes),
- paint coating ,
- plastic coating.
- cleaning of surfaces is effected by shot blasts ejected by one or more projecting rotors,
- pipes and round bars move in a plane and rotary manner during the cleaning operation,
- speed of moving of cleaned elements is steplessly adjusted and it depends on:
- type and degree of contamination,
- bar or pipe diameter,
- customer’s wishes regarding capacity and expected cleaniness of surface.
- they are suitable for continuous operation in cleaning stations under full control of cleaning process.

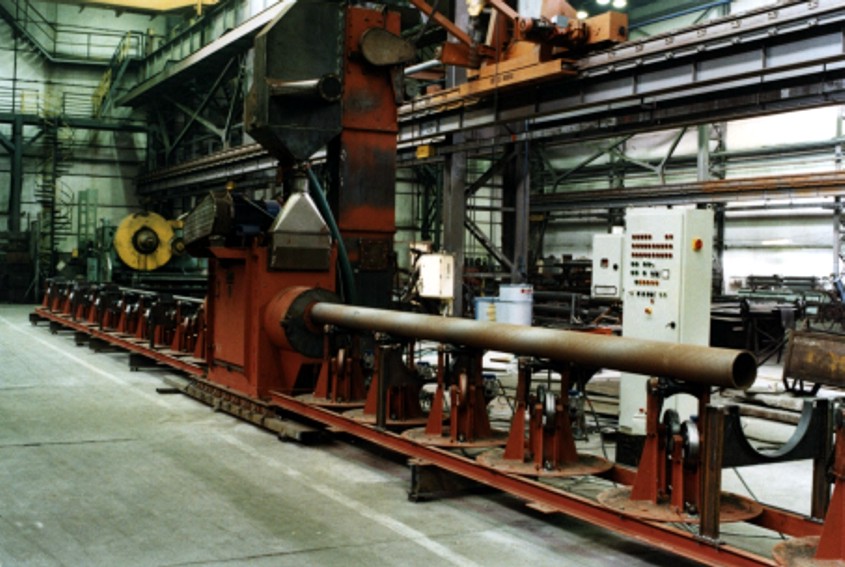

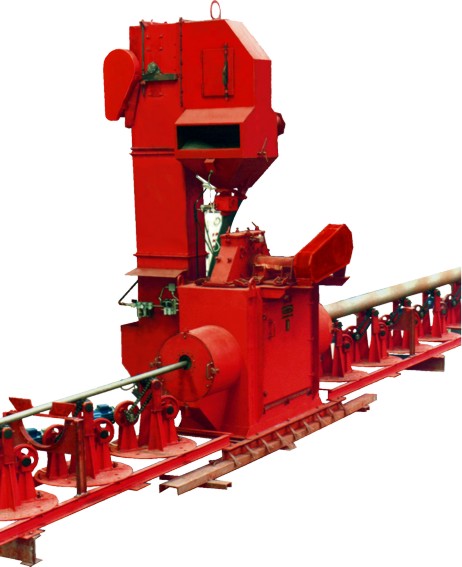

In the working chamber a projecting rotor projects shot at high speed onto outer surfaces of pipes. Impurities and shot descend through a grate floor and a chute to the base of bucket elevator which transfers them to an air separator. Impurities separated in the separator go to wastes tank whereas clean shot is transported by a pneumatic shot feeder to the projecting rotor funnel.
Advantages:
To ensure constant cleaning capacity the shot blasting machine has been equipped with an automatic shot refiller.
To clean pipes A50 ÷ A200 mm a roller conveyor shall be used. After rollers, chain and guards are disassembled you will have a disk conveyor for pipesA200 ÷ A450 mm.
Speed of movement and rotation of pipes is steplessly adjusted by means of an inverter and stepwise adjusted by changing positioning angle of rollers or disks.
Technical specifications:
Unit | OWR 50.450 | |
---|---|---|
Diameter range of cleaned pipes: | ||
- on roller conveyor |
mm |
50 - 200 |
- on disk conveyor |
mm |
200 - 450 |
Length range of cleaned pipes |
m |
10 - 12 |
Approx. cleaning capacity of pipes (moving speed) | ||
- 50mm |
m/min |
5,0 |
- 200mm |
m/min |
3,5 |
- 450mm |
m/min |
1,0 |
Max. capacity of projecting rotor |
kg/min |
350 |
Recommended abrasive media: cast steel shot or steel shot made of wire of granulation range |
mm |
0,8 - 1,2 |
Compressed air pressure |
MPa |
0,4 - 0,6 |
Approx. compressed air consumption for 8h operation |
Nm3 |
0,2 |
Voltage |
V |
3 x 380/220 |
Frequency |
Mz |
50 |
Total installed power |
kV |
33 |
Compressed air volume extracted from working chamber and separator |
m3/s |
1 |
Vacuum at connection pipe |
Pa |
550 |
Working temperature |
oC |
+5 - +40 |
Emitted noise level |
dBA |
do 90 |
Shot amount for first loading |
kg |
~ 500 |
Dimensional deviations of pipes should correspond to Polish Norms.
